La Cimbali Junior Casa DT1

The Junior Casa DT1 has a beautiful stainless outer shell that looks great on black marble, blends in with other stainless steel appliances, and fits under your standard cabinet height of 17 3/4 in. Some of our favorite features of this heat exchanger machine include its ultra quiet rotary pump, programmable volumetric dosing, and the unique ability to directly drain into the drip tray.

$5,150.00 $3,995.00

In stock

Espresso Machine

La Cimbali



When a customer would call us and ask, "What machine would you recommend that will last 20 years or more, with the commercial build quality, and will still look good in our kitchen?" The La Cimbali Junior Casa DT1 espresso machine was the machine we would recommend hands down. The Junior Casa DT1 has a beautiful stainless outer shell that looks great on black marble, blends in with other stainless steel appliances, and fits under standard cabinet heights of 17 3/4". The Junior Casa DT1 espresso machine has a rotary pump, is very quiet, has programmable volumetric dosing, must be plumbed in, runs on a 15 amp 110-volt circuit, and has the ability to direct drain into the drip tray or not.

Key Features

Many new features have been added to this machine, including the ability of passive pre-infusion, dual gauges, and a new three-hole steam tip with smaller holes which makes it simple to produce great micro foam even when doing small quantities of milk.


It is very simple to activate pre-infusion: hold any button on the display for 2 seconds and it goes into a pre-infusion mode when you make that drink. Press and release any button and it makes the shot without pre-infusion.

The La Cimbali Junior Casa's portafilters are compatible with VST insert baskets in all sizes up to and including the 20g. Larger capacity VST insert baskets will not work unless in a bottomless portafilter.

Technical Notes

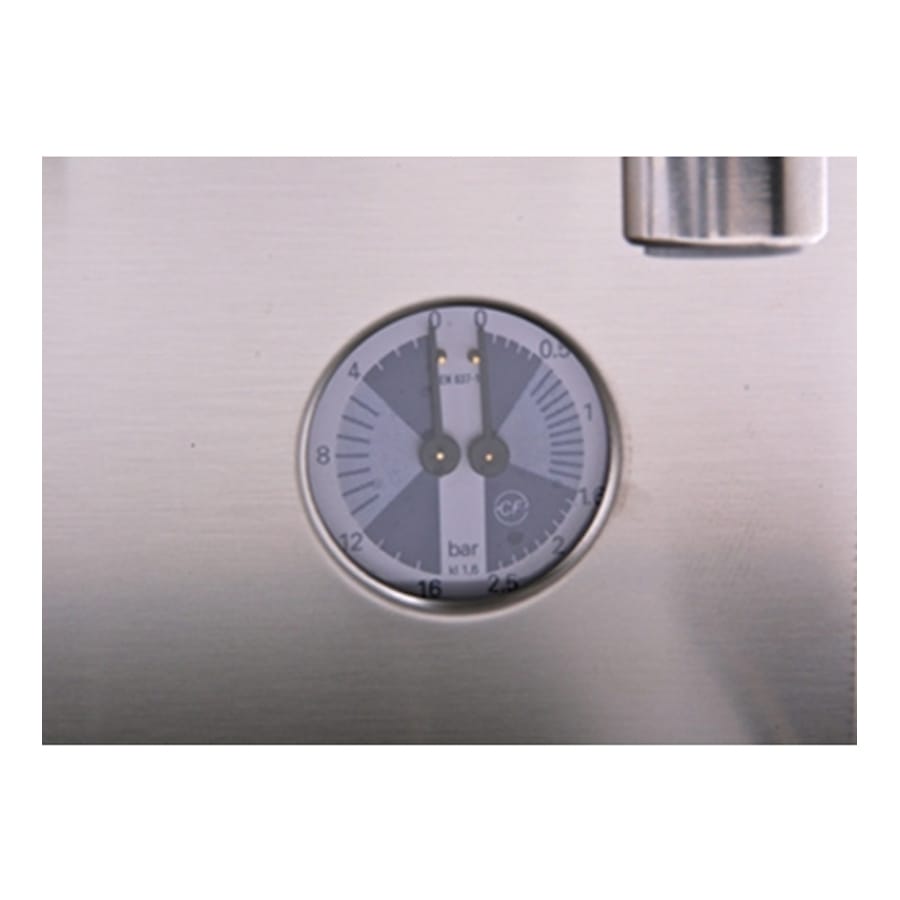

  • Dual gauge
  • Built-in passive pre-infusion
  • Three-hole steam tip with smaller holes for easy production of micro-foam
  • Stainless steel outer shell
  • Stainless steel multidirectional steam arm
  • Stainless steel multidirectional hot water tap
  • Rotary pump

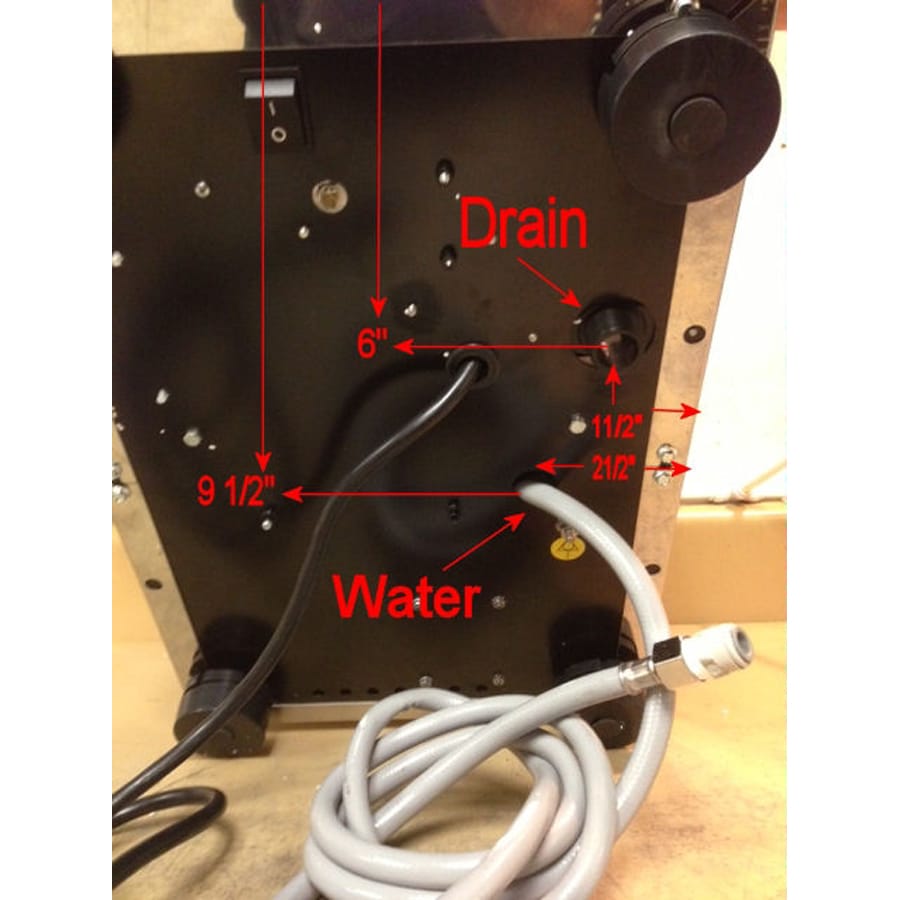

  • Direct plumb and drain
  • Programmable volumetric dosing
  • Insulated 2.5 liter stainless steel boiler with Ruveco Teck coating
  • 15 amp

Included with the Junior Casa DT1

  • 1 single spouted portafilter with insert basket
  • 1 double spouted portafilter with insert basket
  • 1 braided water line
  • 1 plastic tamper
  • 1 plastic scoop
  • 1 rubber back flush disk
  • 1 brush


We fulfill orders Monday through Friday from our warehouse in Latham, NY. Orders may take anywhere from 1-3 business days to be fully processed and shipped out. We use USPS or UPS as our preferred carriers. Orders over $50 are eligible for FREE shipping within the contiguous U.S., and we reserve the right to select which carrier to use based on cost and speed in which the package will arrive to the final destination. Orders over $250 will require a signature for delivery. If however, you would like to waive this additional insurance, please fill out the form here and by doing so you agree to the terms and conditions contained within. Please save all packaging for any future reasons for shipping including returns, exchanges, and repairs. All exchanges & returns must be recieved within 30 days of the ship date. A return can be initiated by contacting a Chris' Coffee customer service representative here.

Commercial equipment & coffee are NOT eligible for returns or exchanges.

Read Full Shipping Policies & Full Refund Policy Here.

Please Note: Chris' Coffee will not be responsible for any delivery delays due to unforeseen circumstances outside our reasonable control such as delays due to severe weather, natural disasters, strikes, etc.

For any questions or concerns please email support@chriscoffee.com

Height 17 in.
Width 12.5 in.
Depth 18.5 in.
Cup Clearance 3.3 in.
Weight 73 lbs.
Voltage 110 V
Amperage 15 A
Wattage 1200 W
Outlet Requirements 60 Hz / 110 V (Some Exceptions Apply)
Other Specifications
Boiler(s) Material Stainless Steel
Boiler Size 2.5 L
Certifications NSF / UL / ETL
Reservoir SizeNA

Download Parts Breakdown
