Silvano Evo ships via UPS or FedEx, signature is required for the shipment. You are required to sign for Silvano Evo but if you would like to waive this additional insurance please fill out the form here and by doing so you agree to the terms and conditions contained within. Please save all packaging for any future reasons for shipping including returns, exchanges, and repairs. All exchanges & returns must be recieved within 30-days of the ship date and a return can be initiated by contacting a Chris' Coffee customer service reprentative here. Silvano Evo must be returned in the condition recieved - all shipping costs will be deducted from the original purchase price contained on the order Silvano Evo was placed on.
Full Shipping Policies & Full Returns & Refund Policy

1 Group
EE Semi-Automatic
Hybrid boiler (.4 liter)
1 Stainless steel steam arm
Vibratory Pump
15 Amps / 110 Volts
Polished stainless steel

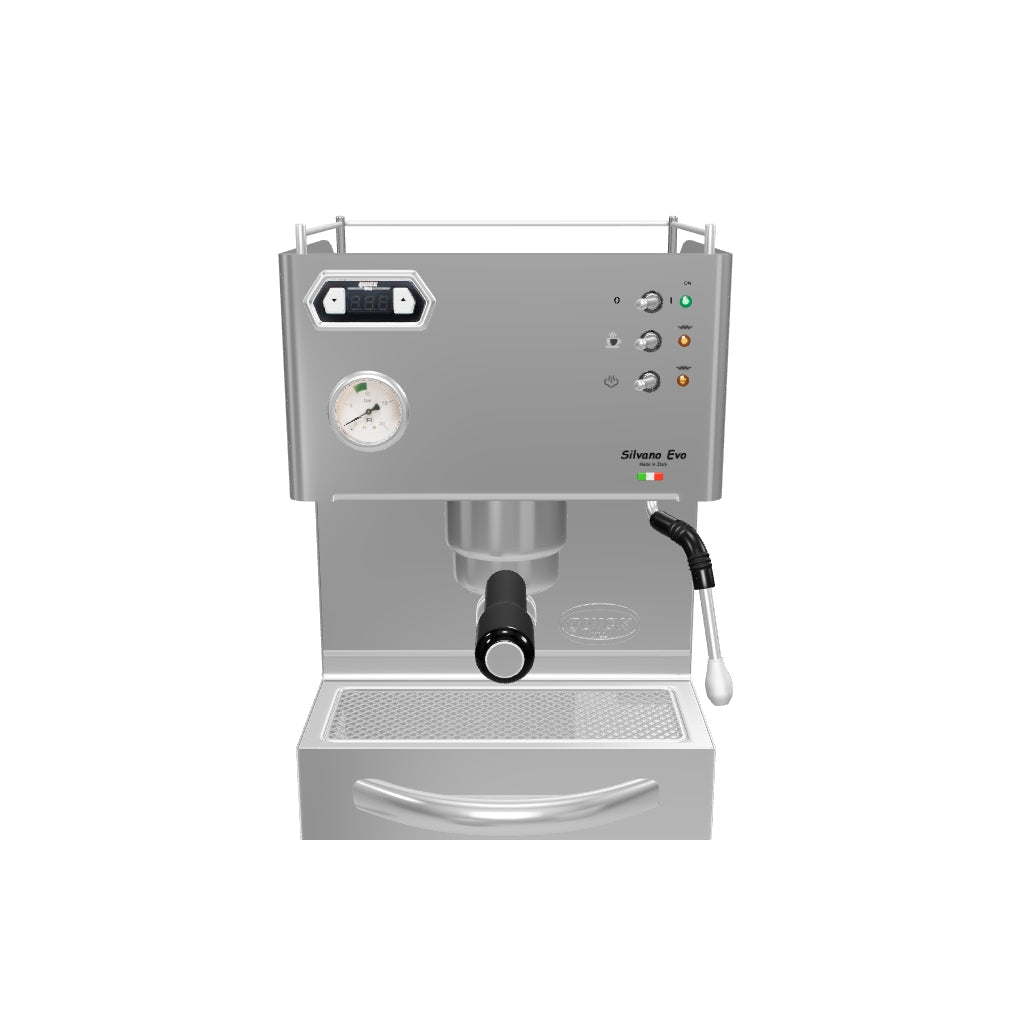

The Silvano Quick Mill is an entry-level machine with advanced features. While working with Quick Mill Chris' Coffee have assisted in the evolution of the Silvano Evo to develop this hi-tech coffee maker. The Silvano Evo's stainless steel exterior combines the beauty and value of a traditional espresso machine with the latest technology for producing quality coffee no matter what your beverage preference is! If you're making espressos, cappuccinos, lattes, and so much more you'll be impressed with the Quick Mill Silvano's ability to keep up and maintain consistency in such a cost effective product.

New Features of the Silvano Evo

PID Display with a Built-In Shot Timer
Thermoblock Steam
Allowing for unlimited steam and can be turned off independently of the coffee boiler to conserve energy. You can now steam milk while you're pulling the perfect shot just like a professional machine.

Exclusive North American Importer

Set-Up Tip

Before steaming milk for the first time we recommend you let some air out of the steam wand to purge out any residue that might be in there from initial assembly.

New PID Display with built in shot timer
Three position power switch (left - power on for initial fill, center - power off, right - power on and heating)
Resettable high limits for coffee boiler and heat bank
2 vibratory pumps with klixon thermal fuse for overheat protection
Adjustable expansion valve, located under the group (No need to remove the shell to adjust )
Pump pressure gauge
3-Way group solenoid valve
Adjustable PID controller with programmable offset for coffee boiler
Fahrenheit or Celsius capable
Solid state relay
Swivel steam arm with 2 hole steam tip
Switch to turn steam bank off individually to save power, steam bank heats up in 2 minutes
Stainless steel construction
Removable drip tray and lid
Cup warming tray
One double spout portafilter (58mm)
Two insert baskets (a single and a double)
Back flush disk
3" clearance between the drip tray and the portafilter

Dimensions

Height	16 in
Width	10 in
Depth	13 in
Cup Clearance	4 in
Weight	35 lbs

Electrical

Voltage	110 V
Amperage	15 A
Wattage	1000/600 W

Other Specifications

Boiler(s) Material	brass/aluminum/copper
Boiler Size	0.4 L
Certifications	none
Reservoir Size	2 L
