Highlights
Modbar espresso AV is the most consistent and stable under-counter espresso equipment available and the first product designed in collaboration between Modbar and La Marzocco.
Modbar AV

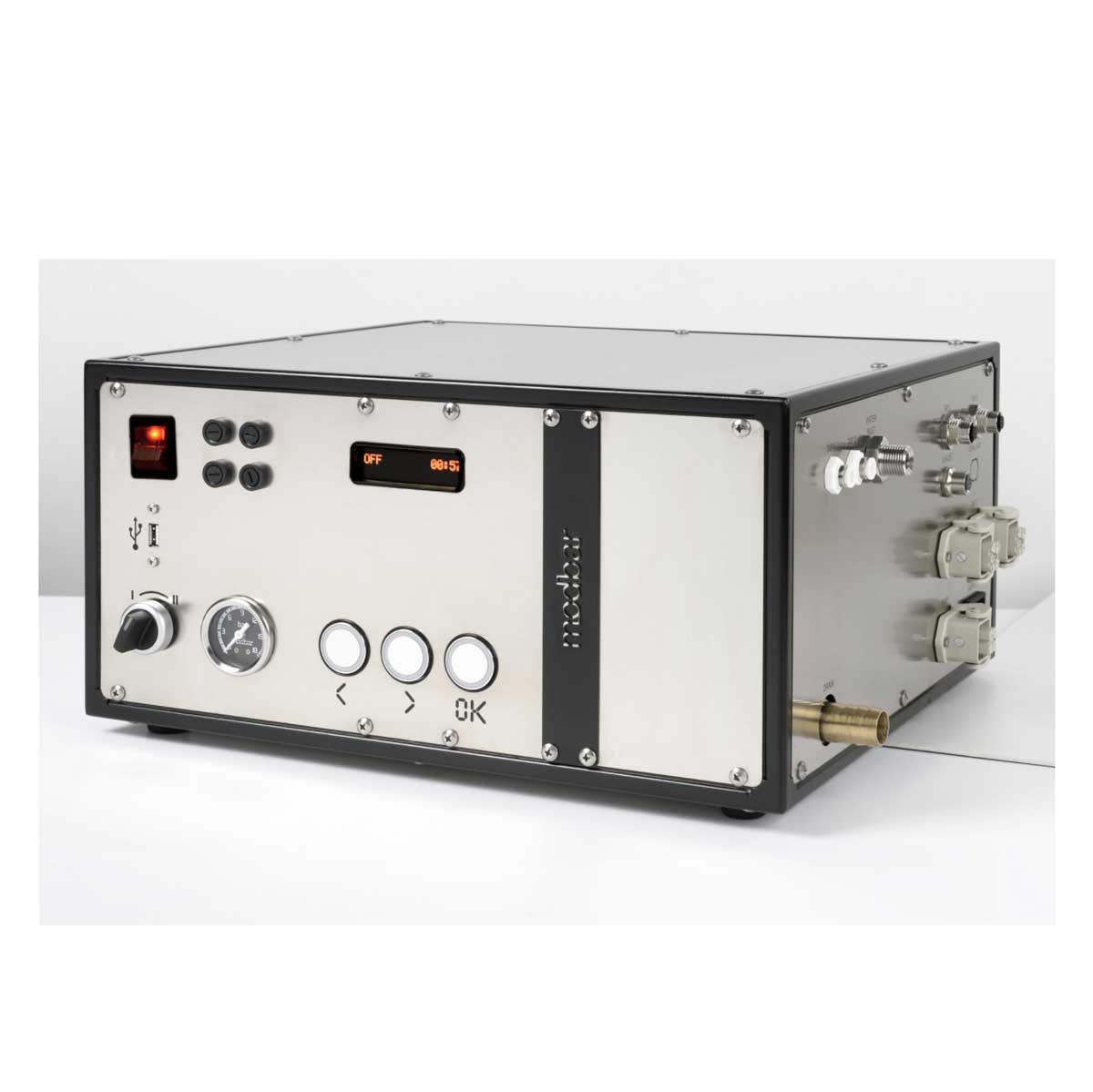

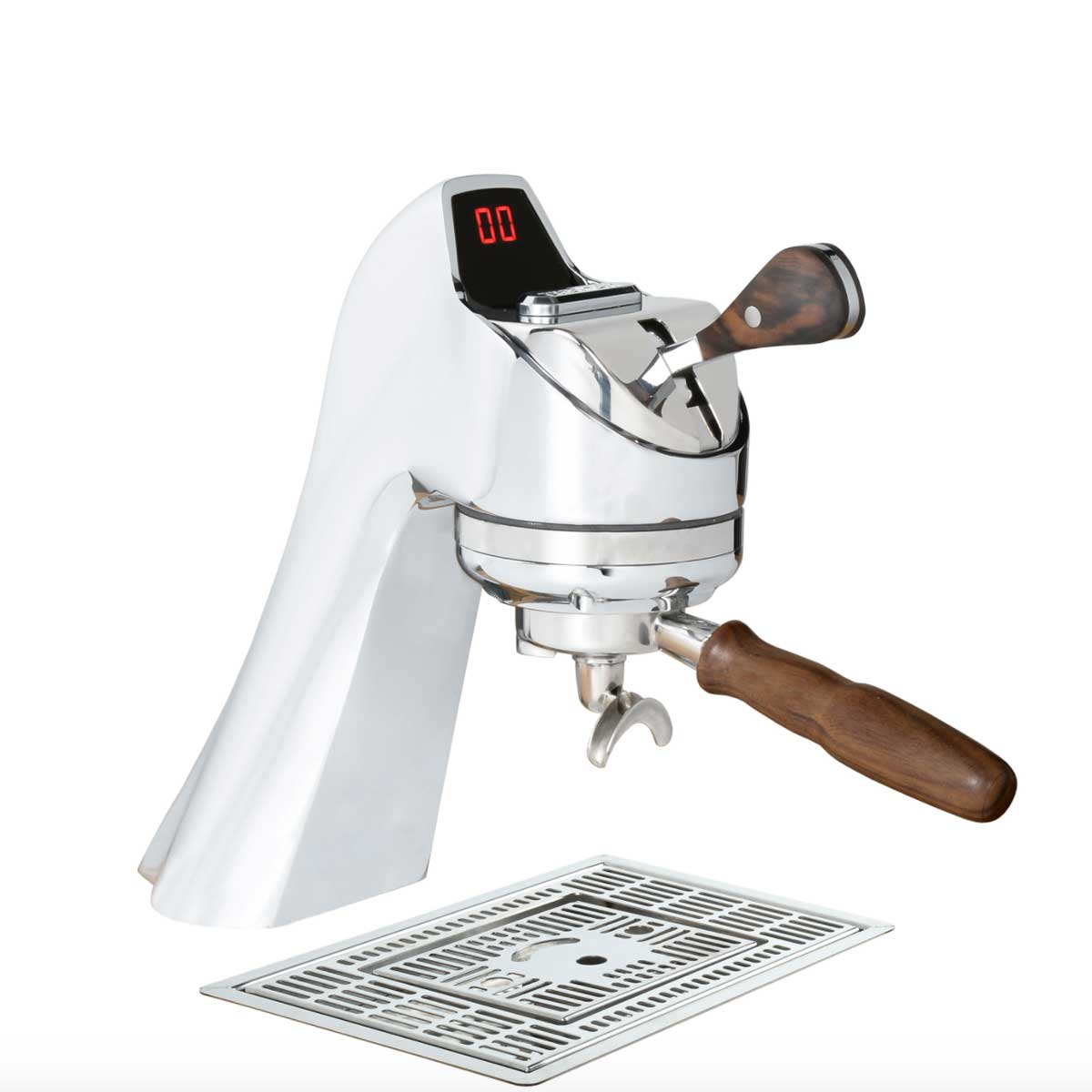

Modbar espresso AV is a ground-up rethink, engineered from scratch based on the footprint of our original system. When we started thinking about the next machine to add to the Modbar lineup, we wanted to create something completely new but preserve the iconic look and feel of our Espresso tap. Rather than redesign or update the original Espresso system, we turned to a tried and true friend we knew would provide a solid foundation for a new machine: the Linea PB.

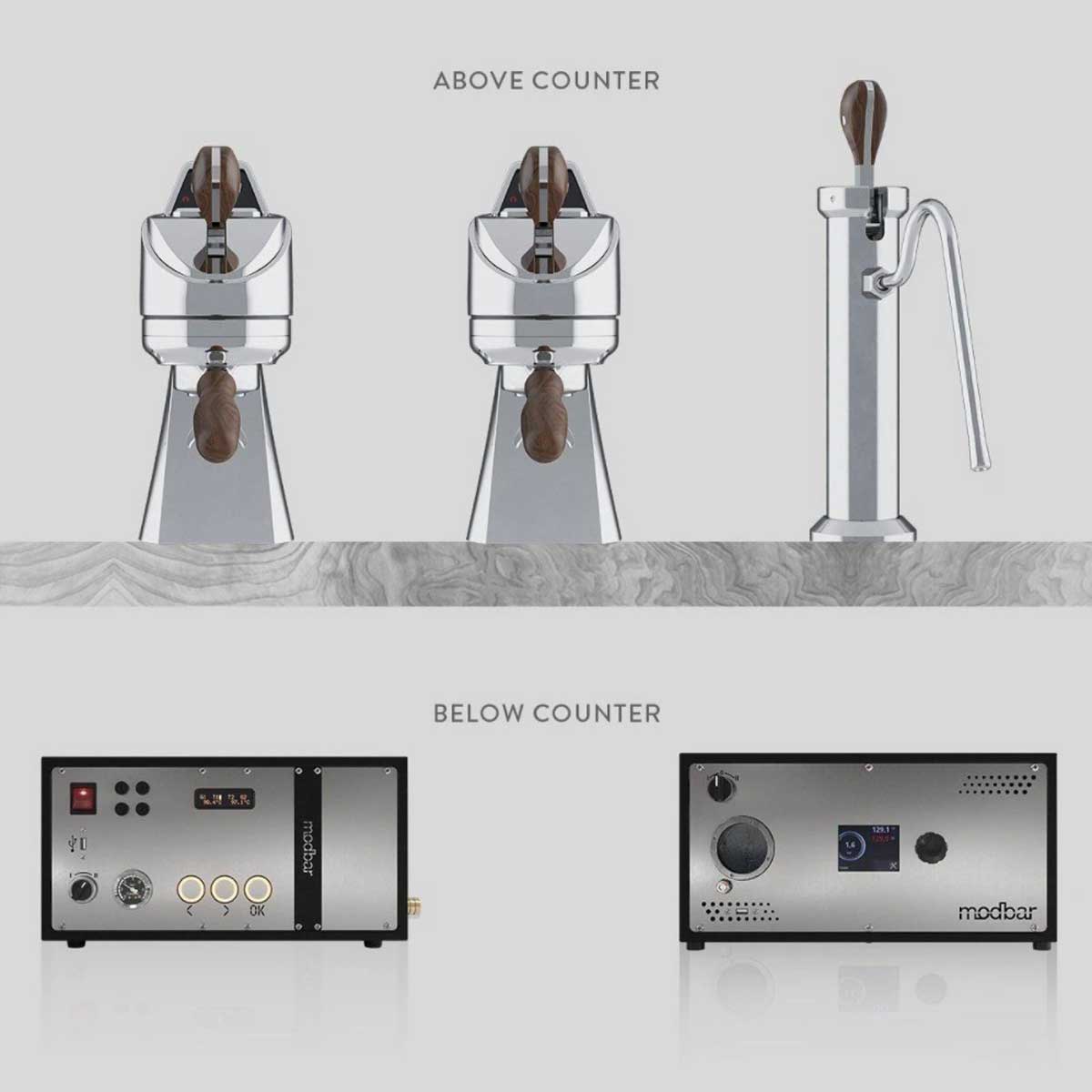

- One under-counter module can support two espresso taps
- No additional power required to support two taps
- Ideal for high-volume environments
- Precise temperature stability, the same as the Linea PB

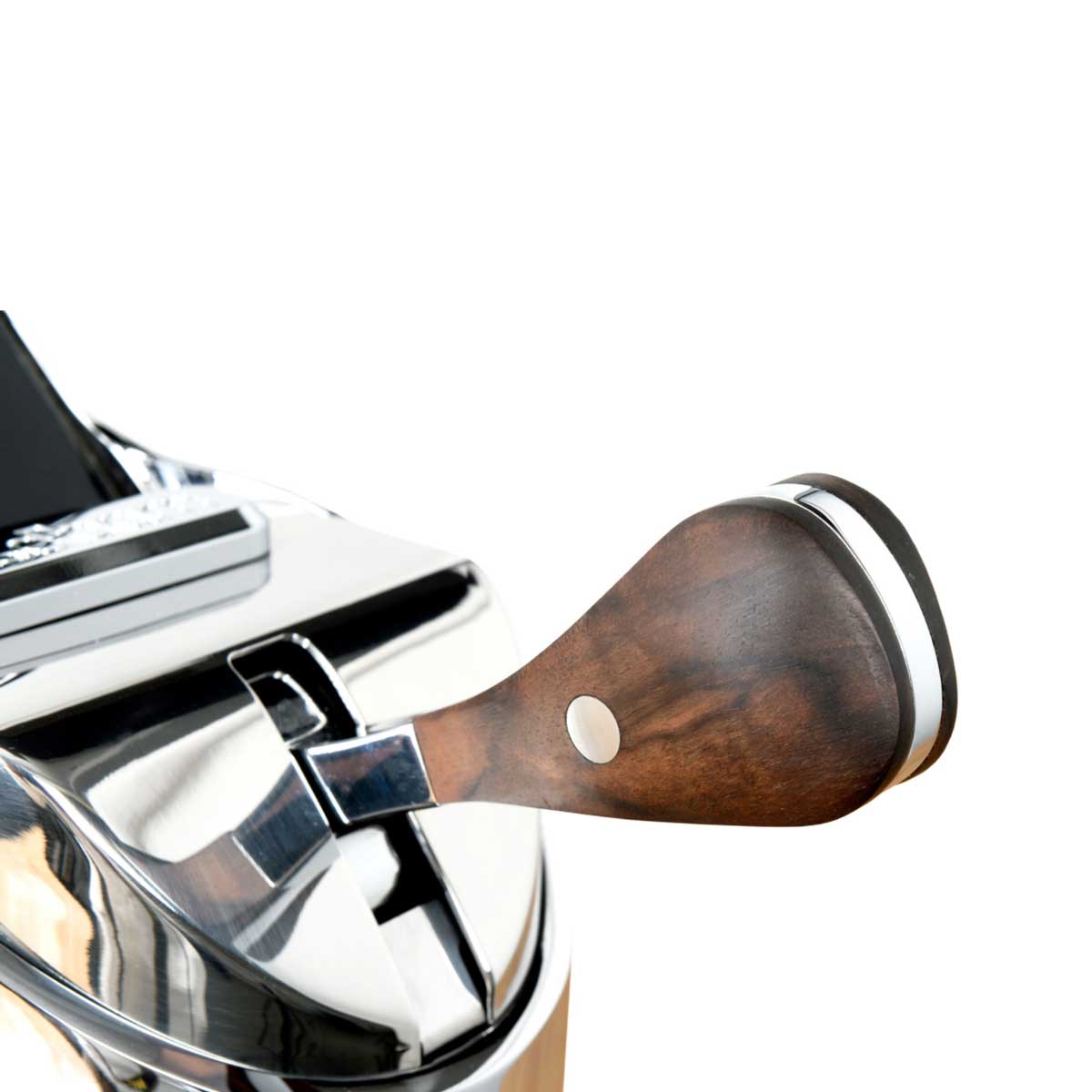

- Simple controls and multi-position programmable lever
- Dose by volume, weight or continuously
- Auto back-flush and rinse programs
- Adaptable drip tray comes with or without a built-in scale
Specifications for Modbar espresso AV
- Dimensions: TAP: 5.5 x 12.5 x 14 in, MOD: 16 x 8.5 x 15 in
- Weight: TAP: 23 lbs, MOD: 40 lbs
- Capacity: MOD: 2.8l (Dual boiler)
- Electrical: 208V - 240V
- Amps: 14.2A (ETL) / 14A (CE) max*
- Element Wattage: 3264w (ETL) / 3227w (CE) max*
- Frequency: 50/60hz
- Phase: Single
- Certifications: ETL, CE, NSF
- 3D CAD Files (.zip)
- Water filter required (not included)
- Industry professional installation and setup required
Dimensions
| Height | N/A in |
| Width | N/A in |
| Depth | N/A in |
| Cup Clearance | Contact Us for More Information |
| Weight | Contact Us for More Information |
Electrical
| Voltage | 220 V |
| Amperage | 20 A |
| Wattage | 3310 W |
| Outlet Requirements | 60Hz / 110V (Some Exceptions Apply) |
Other Specifications
| Boiler(s) Material | N/A |
| Boiler Size | 4.61 L |
| Certifications | UL, CE |
| Reservoir Size | N/A L |
| Included Accessories |
Warranty
| Warranty Period | 2 Year Manufacturer Warranty |
| Warranty Provider | La Marzocco |
| Warranty Contact | christopher@lamarzocco.com or (206) 258-2532 x2 |
